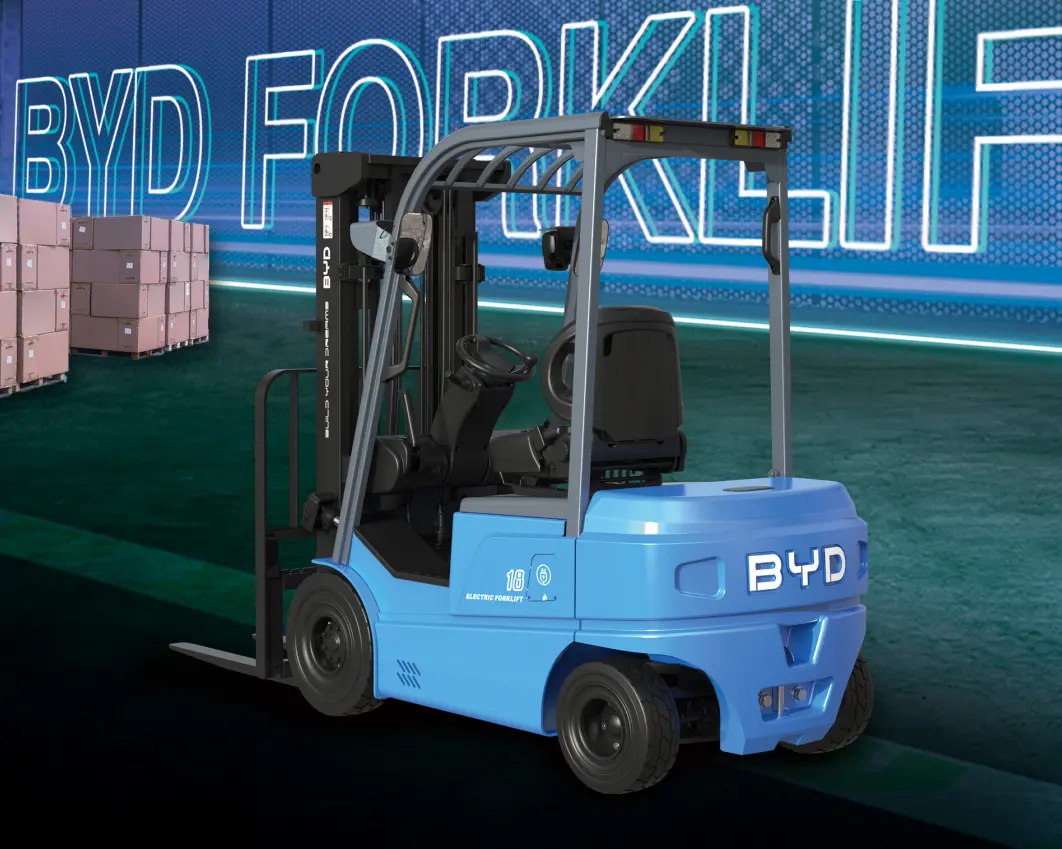

1.6 ton ride-on lithium battery forklift EL-Pro16S MAX

BYD EL-Pro16S MAX is a 1.6-ton ride-on lithium-ion balance forklift truck with compact structure, flexible control, and stable power. It is suitable for handling and stacking of medium and light materials such as warehousing, light industry, food cold chain, and factory turnover. It provides a low-maintenance, green handling equipment solution.

Core specifications

The rated lifting weight is 1.6t, the load center distance is 500mm, and the electric ride-on structure is adopted. The total weight of the vehicle including the battery is 2905kg, the wheelbase is 1400mm, the length without the fork is 2023mm, and the width of the whole machine is 1050mm.
The minimum height of the gantry is 2020mm, the height of the top frame is 2050mm, the standard lifting height is 3000mm, the maximum height of the gantry from the ground is 3985mm, and the free lifting height is 120mm, which can be adapted to low-space operations.
The minimum turning radius is 1650mm, and the steering performance is flexible. It is suitable for 10001200mm horizontal pallet working channel width 3345mm, 8001200mm vertical pallet working channel width 3470mm. The ground clearance between the gantry and the frame is 95mm, which can smoothly pass through the conventional road surface.
Fork size 40/100/1070mm, in line with ISO2328 standards, fork rack width 1000mm, good versatility. The gantry supports forward tilt 5 and backward tilt 8, which is convenient for goods to be picked and placed in alignment.

Power system and operating performance

The equipment is equipped with 80V/270Ah lithium battery, the battery weight is 210kg, and it is equipped with AC electronic control system, which can support multi-shift continuous operation. Equipped with dual 5kW drive motors and 15kW lifting motors, the power output is stable.
The vehicle's full-load and no-load travel speed is 16km/h; the full-load lifting speed is 450mm/s, and the no-load lifting speed is 500mm/s; the full-load falling speed is 530mm/s, and the no-load falling speed is 500mm/s, and the cargo lifting state is stable.
Full load climbing capacity of 16%, no load climbing capacity of 20%, can cope with factory ramps, loading and unloading platforms and other road conditions. Full load acceleration time of 4.5s, no load acceleration time of 4.0s, smooth start and stop, suitable for high frequency reciprocating operation. Maximum traction load of the whole vehicle is 9.0N, no load 6.7N.

III. Body structure and safety configuration

Frame axle load distribution is reasonable, full load front axle load 3840kg, rear axle load 665kg, no load front axle load 1235kg, rear axle load 1670kg, good operation process stability. Equipped with SE industrial tires, front wheel specification 187-8, rear wheel specification 154.5-8, suitable for cement, asphalt and other factory pavement.
The hydraulic braking system is adopted, and the braking effect is stable and reliable. The working pressure of the hydraulic system is 16MPa, and the system operation state is stable. The driver's position noise is ≤75dB (A), and the working environment is comfortable. The whole vehicle is equipped with a top guard, and the door frame has a wide field of vision to reduce the blind spot of the operation.

IV. Operation experience and application scenarios

The seat is 985mm above the ground, combined with the chassis shock absorption design to relieve fatigue caused by long-term operation. The control layout is simple, the operation is light, and it is easy to use.
This product can be used in e-commerce warehousing, logistics transshipment, light manufacturing, food processing, cold chain warehousing, supermarket warehouses and other places, and can operate stably in indoor room temperature and conventional outdoor environments.
