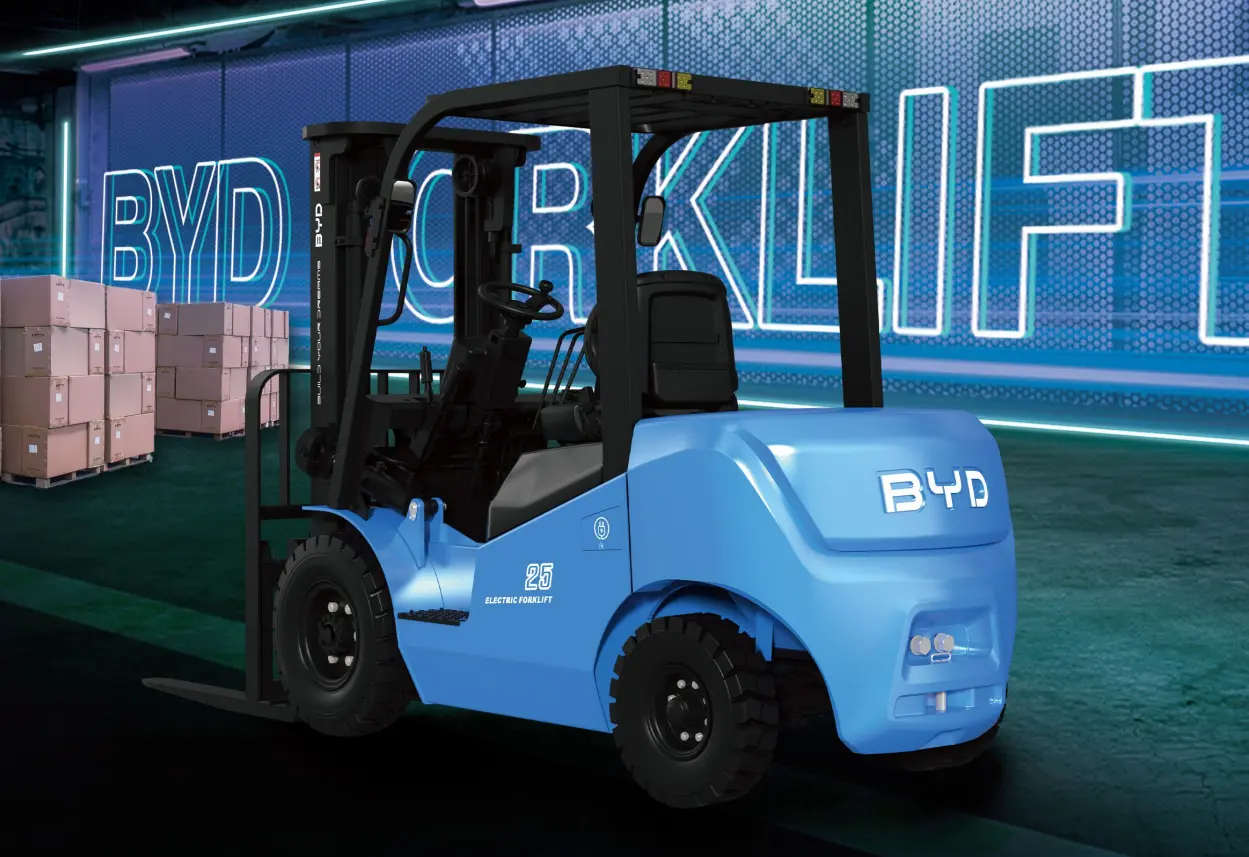

2 ton seat-mounted lithium battery balance forklift EL Pro20MAX

BYD EL-Pro20MAX is a 2-ton ride-on lithium-ion balance forklift. It adopts an integrated drive axle and a high-strength frame design, taking into account load stability, dynamic performance and operation comfort. It is suitable for medium and high-strength material handling and stacking scenarios such as warehousing and logistics, light manufacturing, food processing, and factory transshipment. 1. Core specification parameters

First, the core parameters

• rated lifting capacity
  : 2000Kg (2 tons), load center distance 500mm


• Body size
  : Total length 3567mm (excluding fork 2497mm), total width 1170mm, wheelbase 1605mm


• gantry performance
  Minimum height 2010mm, standard lifting height 3000mm, maximum height 4040mm, free lifting height 130mm


• ground clearance
  : 105mm at the door frame, 110mm at the frame, good passability


• Passages and Turns
  : Suitable for 10001200mm horizontal tray channel width 3830mm; 8001200mm vertical tray channel width 4027mm; minimum turning radius 2186mm, inward turning radius 509mm


• Fork configuration
  : Size 40/100/1070mm, fork rack width 1040mm, in line with ISO2328 standard


• Vehicle weight
  : including battery total weight 3493kg; full load shaft load 4723kg/770kg, no load shaft load 1550kg/1943kg


• Tire configuration
  : Solid tire, front wheel 7.00 12/5.0 EQ, rear wheel 187 8, wear-resistant and stable


Power and operating performance

• Power System
  : Equipped with 80V/210Ah lithium iron phosphate battery, the battery weighs 154kg and the size is 722/500/502mm; it is matched with AC AC electronic control and runs efficiently and stably.


• Motor configuration
  Drive motor 12.5kW, lifting motor 19kW, abundant power output.


• Travel speed
  Full load/no load is 18km/h, efficient commuting.


• Lifting speed
  : Full load lift 420mm/s, no load 450mm/s; full load/no load drop is 500mm/s, smooth and smooth operation.


• Traction and climbing
  Full load maximum traction 13305N, no load 8370N; full load climbing ability 18%, no load 20%, can cope with ramp and platform conditions.


• Energy performance
  Lithium battery drive, zero emissions, low noise, lower energy consumption cost than internal combustion forklifts, suitable for multi-shift continuous operation
  BYD forklift
  。

III. Safety and structural configuration

• Braking system
  Hydraulic braking, stable and reliable braking, suitable for high-frequency start and stop.


• hydraulic system
  The working pressure is 115-125 bar, the system runs stably, and the lifting and steering responses are sensitive.


• safety protection
  Equipped with a high-strength roof guard (height 2193mm) to reduce the blind spot of the operation; the driver's noise is ≤75dB (A) to optimize the working environment.


• frame gantry
  : High-strength design, through intensive testing, stable load, suitable for complex working conditions.


IV. Operation experience and application scenarios

• Comfort design
  The height of the seat is 1163mm, the operation layout is reasonable, and it is not easy to fatigue after long-term operation.


• Easy to control
  Light steering, clear gear, low difficulty to get started, suitable for high-frequency operations.


• applicable scenario
  Widely used in e-commerce warehousing, logistics transshipment, light industry manufacturing, food cold chain, supermarket warehouses and other indoor and outdoor conventional environments to meet the needs of 2-ton cargo handling, stacking, loading and unloading.


• Electric forklift parameter comparison table
  parameter name	unit	EL-Pro20MAX
  Model name	/	EL-Pro20MAX
  dynamic form	/	Electric
  mode of operation	/	Seat
  rated lifting capacity	Q kg	2000
  load center distance	c mm	500
  Front overhang	x mm	441
  wheelbase	y mm	1605
  Gross weight (including battery)	kg	3493
  Axle load (full load)	kg	4723/770
  Axle load (no load)	kg	1550/1943
  Tire form	/	Solid tire
  Front wheel size	mm	7.00-12/5.0EQ
  Rear wheel size	mm	187-8
  Number of front/rear wheels, x = drive wheels	/	2x/2
  front track	b10 mm	974
  rear track	b11 mm	965
  Forward/Back Angle	a / b	5-8
  gantry height	h1 mm	2010
  Free lifting height	h2 mm	130
  Standard gantry lifting height	h3 mm	3000
  Maximum height of the gantry (off the ground)	h4 mm	4040
  Ceiling height	h6 mm	2193
  Seat height (off the ground)	h7 mm	1163
  Traction pin height	h10 mm	359
  full length	l1 mm	3567
  Full length (excluding forks)	l2 mm	2497
  total width	b1/b2 mm	1170
  Fork size	s/e/l mm	40/100/1070
  ISO 2328 compliant fork racks, frames/forms A, B	/	2A
  Fork rack width	b3 mm	1040
  Minimum height from the ground at the gantry	m1 mm	105
  Minimum height from the ground at the frame	m2 mm	110
  Channel width with 1000x1200 horizontal tray	Ast mm	3830
  Channel width with 800x1200 vertical tray	Ast mm	4027
  minimum turning radius	Wa mm	2186
  Inward turning radius	b13 mm	509
  Driving speed, load/no load	km/h	18/18
  Lifting speed, load/no load	mm/s	420/450
  Drop speed, load/no load	mm/s	500/500
  Maximum traction, S2 = 5min, load/no load	N	13305/8370
  Maximum climbing capacity, S2 = 5min, load/no load	%	18/20
  Brake form	/	hydraulic brake
  Drive motor power, S2 = 60min	kw	12.5
  Lifting motor power, S3 = 15% ED	kw	19
  Battery capacity	V/Ah	80/210
  Battery weight	kg	154
  Battery size L/W/H	mm	722/500/502
  VDI cycle type energy consumption	kw/h
  Electronic control type	/	AC
  Hydraulic system working pressure	bar	115-125
  Noise at the driver	dB (A)	≤75
  Traction connection	/	PIN
