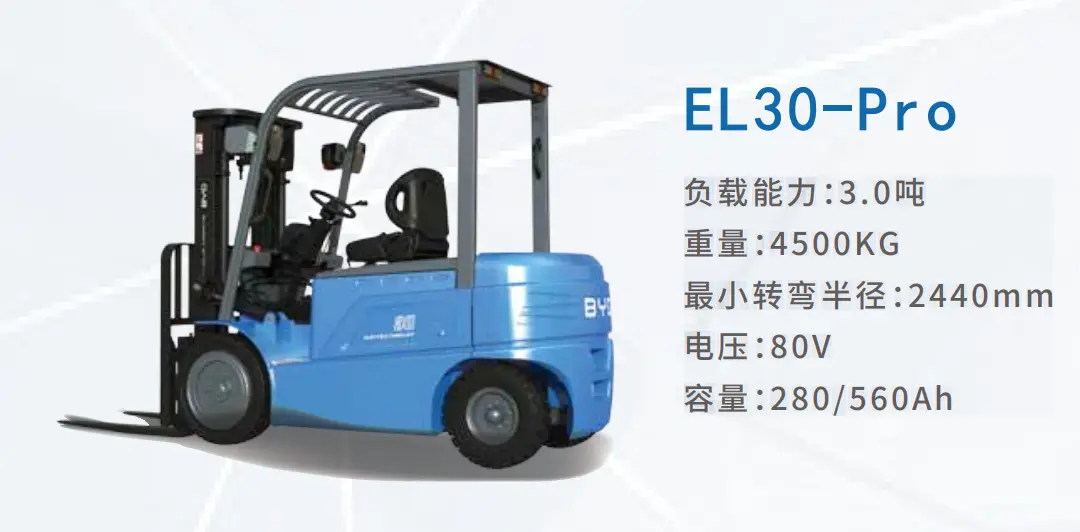

3-Ton ride-on lithium battery balance forklift EL Pro30MAX

 EL Pro30MAX is a
3 ton seat-mounted lithium battery balance forklift
Relying on BYD's self-developed lithium iron phosphate power battery and AC electronic control technology, combined with extended wheelbase, reinforced frame and door frame structure, taking into account heavy load stability, power output efficiency and operation comfort, it is suitable for warehousing and logistics, heavy manufacturing, building materials transportation, port transshipment and other medium and high-strength material handling and stacking scenarios.

Core specifications

• rated lifting capacity
  : 3000kg (3 tons), load center distance 500mm


• Body size
  : Total length 3870mm (excluding fork 2795mm), total width 1270mm, wheelbase 1770mm, front suspension distance 480mm


• gantry performance
  Minimum height 2125mm, standard lifting height 3000mm, maximum height 4115mm, free lifting height 130mm


• ground clearance
  120Mm at the door frame and 140mm at the frame, the passability is better than that of products of the same level


• Passages and Turns
  : Suitable for 10001200mm horizontal tray channel width 4165mm; 8001200mm vertical tray channel width 4365mm; minimum turning radius 2480mm, inward turning radius 645mm


• Fork configuration
  : Size 45/122/1070mm, fork rack width 1100mm, in line with ISO2328 standard (3A specification)


• Vehicle weight
  : including battery total weight 4510kg; full load shaft load 6500kg/1010kg, no load shaft load 1840kg/2670kg


• Tire configuration
  : Solid tire, front wheel 289-15, rear wheel 6.5-10, wear-resistant and anti-manufacturing, suitable for a variety of working conditions


Power and operating performance

• Power System
  : Equipped with 80V/210Ah lithium iron phosphate battery, the battery weighs 154kg and the size is 700/500/505mm; it is matched with AC AC electronic control, and the power output is stable and the energy efficiency ratio is high.


• Motor configuration
  Drive motor 20.5kW, lifting motor 26kW, sufficient power reserve to meet the needs of heavy-duty operations.


• Travel speed
  : Full load/no load is 18km/h, efficient commuting and improved operation efficiency.


• Lifting speed
  : Full load lift 420mm/s, no load 450mm/s; full load drop 550mm/s, no load 450mm/s, smooth operation, saving working time.


• Traction and climbing
  Full load maximum traction 19000N, no load 10500N; full load climbing ability 18%, no load 20%, can easily handle ramp and platform operations
  BYD forklift
  。

• Energy performance
  Lithium battery drive, zero emission, low noise, lower energy consumption cost than internal combustion forklift, suitable for multi-shift continuous operation.


III. Safety and structural configuration

• Braking system
  Hydraulic braking is adopted, and the braking response is sensitive. It is suitable for high-frequency start-stop conditions to ensure safe operation.


• hydraulic system
  Working pressure 135-150 bar, stable system operation, accurate lifting and steering operation.


• safety protection
  Equipped with a high-strength roof guard (height 2240mm) to provide reliable protection; the driver's noise is ≤75dB (A) to optimize the working environment.


• frame gantry
  : Longer wheelbase design to enhance heavy-duty stability; made of high-strength materials, after intensive testing, stable load, suitable for complex working conditions.


IV. Operation experience and application scenarios

• Comfort design
  The height of the seat is 1260mm, the operating space is spacious, the layout is reasonable, and it is not easy to fatigue after long-term operation.


• Easy to control
  Light steering, clear gear, low difficulty to get started, suitable for high-frequency operation rhythm.


• applicable scenario
  Widely used in indoor and outdoor conventional environments such as heavy warehousing, logistics transfer centers, building materials markets, port terminals, and automobile manufacturing, to meet the needs of 3-ton cargo handling, stacking, and loading and unloading.
