Three-fulcrum lithium battery electric forklift BYD-C12T

core parameter

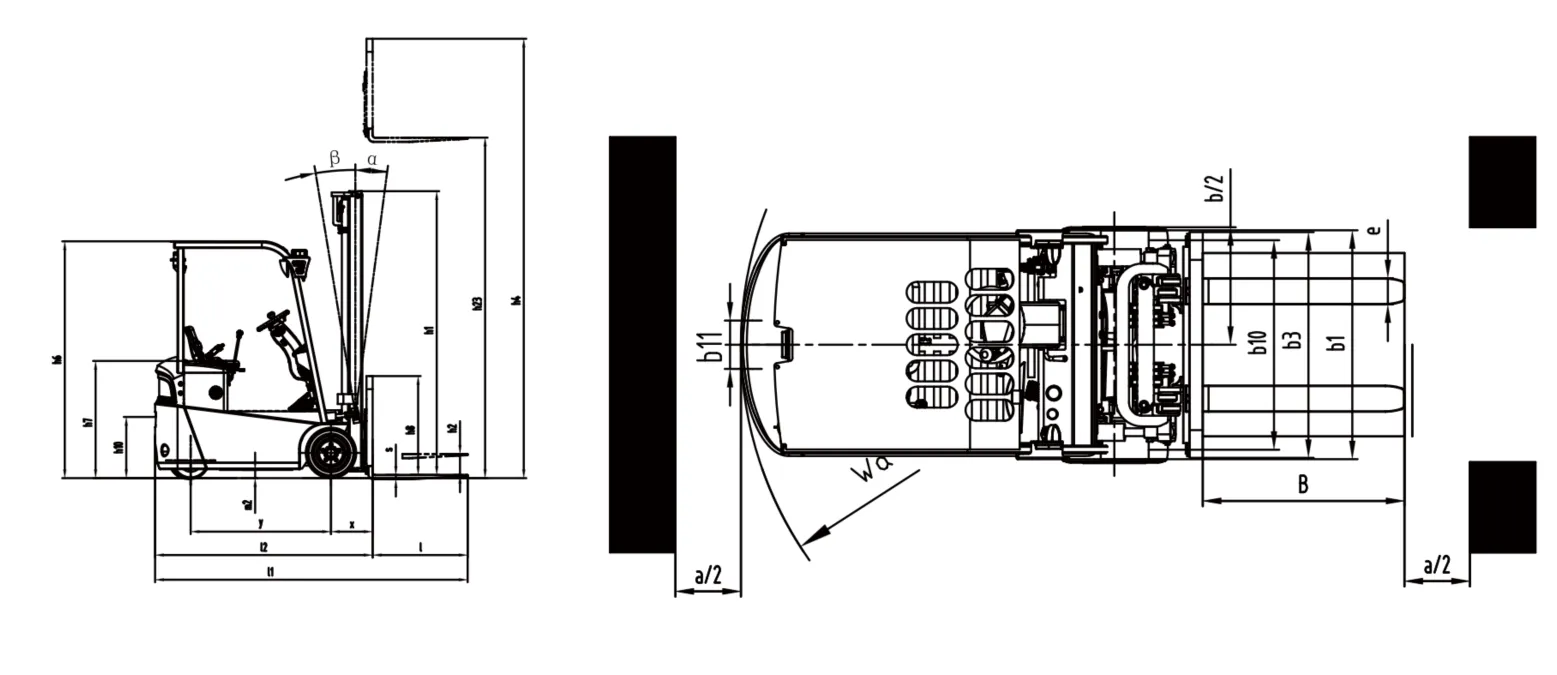

• classification	parameter name	symbol	unit	WORLD C12T
  basic information	manufacturer	-	-	Home
  	Model	-	-	C12T
  	Drive mode	-	-	Electric (Electric)
  	Manipulation form	-	-	Ride-in (Seat)
  core parameter	rated load capacity	Q	kg	1200
  	load center distance	c	mm	400
  	overhang	x	mm	320
  	wheelbase	y	mm	1150
  	overhang	-	mm	215
  weight parameter	Total vehicle weight (including batteries)	-	kg	1925
  	Load status, front/rear axle load	-	kg	2760/366
  	No load, front/rear axle load	-	kg	807/1118
  Wheel parameters	Wheel category	-	-	Solid tire
  	Front wheel size	-	-	4.00-8
  	Rear wheel size	-	-	3.50-5
  	Number of front/rear wheels (x = drive wheels)	-	-	2x/2
  	front track	b10	mm	800
  	rear track	b11	mm	250
  	Door frame forward/backward tilt angle	a / b		5-8
  shape and size	Minimum height of gantry (off the ground)	h1	mm	1885
  	Free lifting height	h2	mm	70
  	Rated lifting height	h3	mm	2800
  	Maximum height of the gantry (off the ground)	h4	mm	3615
  	Ceiling height	h6	mm	1920
  	Seat height (off the ground)	h7	mm	820
  	Traction pin height	h10	mm	/
  	full length of the vehicle	l1	mm	2457
  	Full length (excluding forks)	l2	mm	1687
  	Total width of the vehicle	b1	mm	870
  	Fork size (thickness/width/length)	s/e/l	mm	77010032
  	Fork rack format (according to ISO 2328)	-	-	2A
  	guardrail margin	b3	mm	860
  	Minimum height from the ground at the gantry	m1	mm	65
  	Minimum height from the ground at the frame	m2	mm	65
  	Working channel width (10001000 horizontal tray)	Ast	mm	3037
  	Working channel width (12001200 vertical tray)	Ast	mm	3237
  	minimum turning radius	Wa	mm	1510
  	Inward turning radius	b13	mm	/
  performance parameter	Driving speed (load/no load)	-	km/h	9-10
  	Lifting speed (load/no load)	-	mm/s	230/275
  	Decline speed (load/no load)	-	mm/s	420
  	Maximum traction (S2 = 5min, load/no load)	-	N	1950/2950
  	Maximum climbing capacity (S2 = 5min, load/no load)	-	%	October 15
  	0-10M acceleration time (load/no load)	-	s	/
  	Brake form	-	-	hydraulic
  Drive and electrical	Drive motor power (S2 = 60min)	-	kW	3.5
  	Lifting motor power (S3 = 15% ED)	-	kW	4
  	Battery capacity	-	V/Ah	24V210
  	Battery weight	-	kg	100
  Other configurations	Electronic control type	-	-	AC
  	Hydraulic system working pressure	-	Mpa	16
  	Driver position noise	-	dB (A)	≤80
  	Traction connection method	-	-	PIN

Product features

1. Advanced load-bearing design, flexible and load-bearing

As an advanced load model for the three-pivot narrow-channel model, the C12T increases the rated load to 1.2 tons, while retaining a small turning radius of 1510mm. It can complete the transfer and stacking of heavier goods in limited spaces such as narrow aisles, freight elevators, and workshop aisles with dense shelves. The 1925kg self-weight counterweight is balanced, and the body attitude is stable when driving and stacking at high levels, which is suitable for the needs of multi-layer storage racking operations.

2. Original iron lithium lithium battery, clean operation and low maintenance

Equipped with BYD's self-developed lithium iron phosphate battery, it supports charging and use at any time, and can be replenished during short breaks in the workplace. It is suitable for multi-shift continuous operation scenarios. The battery has a reliable sealing structure, no risk of acid evaporation and leakage, and meets the requirements of clean working environments such as food, electronics, and medicine. The battery has a long cycle life and does not require daily liquid replenishment maintenance, which can reduce the cost of consumables and labor for long-term operation.

3. Humanized control configuration, comfortable driving experience

The ergonomic driving layout is adopted, and the steering force adjustment is smooth, and it is not easy to fatigue after long-term operation. The open driving field of vision is matched with a hollow top frame, which makes the line of sight unobstructed when stacking at a high level. The low-step car design + shock-absorbing seat makes it convenient to get on and off the bus and has good driving cushioning. The whole machine runs with low noise, and the indoor operation will not cause noise interference to the surrounding environment.

4. Multiple safety protections, controllable operational risks

The integrated high-strength roof guard can cushion the impact of falling objects and provide protection for the operator; the body is equipped with a sound and light warning device as standard, which actively reminds the surrounding personnel to avoid when driving and steering; the braking system responds linearly and smoothly, with stable start-stop and ramp parking performance; the lithium battery has built-in multiple protections for overcharging, overheating and short circuit, suitable for safe operation in different warehouse environments.

applicable scenario

Widely suitable for e-commerce transit warehouses, supermarket backyards, light industry assembly workshops, pharmaceutical warehouses, paper packaging factories, etc., for medium and light goods within 1.2 tons, to solve the handling and stacking needs under the premise of limited space. It is a handling equipment that takes into account load-bearing capacity and passability in narrow channel storage scenarios.
